Plot Regression Summaries

Source: R/plot_coefs.R
plot_summs.Rd

plot_summs and plot_coefs create regression coefficient plots with ggplot2.

Usage

plot_summs(
  ...,
  ci_level = 0.95,
  model.names = NULL,
  coefs = NULL,
  omit.coefs = "(Intercept)",
  inner_ci_level = NULL,
  colors = "CUD Bright",
  plot.distributions = FALSE,
  rescale.distributions = FALSE,
  exp = FALSE,
  point.shape = TRUE,
  point.size = 5,
  line.size = c(0.8, 2),
  legend.title = "Model",
  groups = NULL,
  facet.rows = NULL,
  facet.cols = NULL,
  facet.label.pos = "top",
  color.class = colors,
  resp = NULL,
  dpar = NULL,
  coefs.match = c("exact", "regex")
)

plot_coefs(
  ...,
  ci_level = 0.95,
  inner_ci_level = NULL,
  model.names = NULL,
  coefs = NULL,
  omit.coefs = c("(Intercept)", "Intercept"),
  colors = "CUD Bright",
  plot.distributions = FALSE,
  rescale.distributions = FALSE,
  exp = FALSE,
  point.shape = TRUE,
  point.size = 5,
  line.size = c(0.8, 2),
  legend.title = "Model",
  groups = NULL,
  facet.rows = NULL,
  facet.cols = NULL,
  facet.label.pos = "top",
  color.class = colors,
  resp = NULL,
  dpar = NULL,
  coefs.match = c("exact", "regex")
)

Arguments

...

regression model(s). You may also include arguments to be passed to tidy().

ci_level

The desired width of confidence intervals for the coefficients. Default: 0.95

model.names

If plotting multiple models simultaneously, you can provide a vector of names here. If NULL, they will be named sequentially as "Model 1", "Model 2", and so on. Default: NULL

coefs

If you'd like to include only certain coefficients, provide them as a vector. If it is a named vector, then the names will be used in place of the variable names. See details for examples. Default: NULL

omit.coefs

If you'd like to specify some coefficients to not include in the plot, provide them as a vector. This argument is overridden by coefs if both are provided. By default, the intercept term is omitted. To include the intercept term, just set omit.coefs to NULL.

inner_ci_level

Plot a thicker line representing some narrower span than ci_level. Default is NULL, but good options are .9, .8, or .5.

colors

See jtools_colors for more on your color options. Default: 'CUD Bright'

plot.distributions

Instead of just plotting the ranges, you may plot normal distributions representing the width of each estimate. Note that these are completely theoretical and not based on a bootstrapping or MCMC procedure, even if the source model was fit that way. Default is FALSE.

rescale.distributions

If plot.distributions is TRUE, the default behavior is to plot each normal density curve on the same scale. If some of the uncertainty intervals are much wider/narrower than others, that means the wide ones will have such a low height that you won't be able to see the curve. If you set this parameter to TRUE, each curve will have the same maximum height regardless of their width.

exp

If TRUE, all coefficients are exponentiated (e.g., transforms logit coefficents from log odds scale to odds). The reference line is also moved to 1 instead of 0.

point.shape

When using multiple models, should each model's point estimates use a different point shape to visually differentiate each model from the others? Default is TRUE. You may also pass a vector of shapes to specify shapes yourself.

point.size

Change the size of the points. Default is 3.

line.size

Change the thickness of the error bar lines. Default is c(0.8, 2). The first number is the size for the full width of the interval, the second number is used for the thicker inner interval when inner.ci is TRUE.

legend.title

What should the title for the legend be? Default is "Model", but you can specify it here since it is rather difficult to change later via ggplot2's typical methods.

groups

If you would like to have facets (i.e., separate panes) for different groups of coefficients, you can specify those groups with a list here. See details for more on how to do this.

facet.rows

The number of rows in the facet grid (the nrow argument to ggplot2::facet_wrap()).

facet.cols

The number of columns in the facet grid (the nrow argument to ggplot2::facet_wrap()).

facet.label.pos

Where to put the facet labels. One of "top" (the default), "bottom", "left", or "right".

color.class

Deprecated. Now known as colors.

resp

For any models that are brmsfit and have multiple response variables, specify them with a vector here. If the model list includes other types of models, you do not need to enter resp for those models. For instance, if I want to plot a lm object and two brmsfit objects, you only need to provide a vector of length 2 for resp.

dpar

For any models that are brmsfit and have a distributional dependent variable, that can be specified here. If NULL, it is assumed you want coefficients for the location/mean parameter, not the distributional parameter(s).

coefs.match

This modifies the way the coefs and omit.coefs arguments are interpreted. The default "exact" which represents the legacy behavior, will include/exclude coefficients that match exactly with your inputs to those functions. If "regex", coefs and omit.coefs are used as the pattern argument for grepl() matching the coefficient names. Note that using "regex" means you will be unable to override the default coefficient names via a named vector.

Value

A ggplot object.

Details

A note on the distinction between plot_summs and plot_coefs: plot_summs only accepts models supported by summ() and allows users to take advantage of the standardization and robust standard error features (among others as may be relevant). plot_coefs supports any models that have a broom::tidy() method defined in the broom package, but of course lacks any additional features like robust standard errors. To get a mix of the two, you can pass summ objects to plot_coefs too.

For coefs, if you provide a named vector of coefficients, then the plot will refer to the selected coefficients by the names of the vector rather than the coefficient names. For instance, if I want to include only the coefficients for the hp and mpg but have the plot refer to them as "Horsepower" and "Miles/gallon", I'd provide the argument like this: c("Horsepower" = "hp", "Miles/gallon" = "mpg")

To use the groups argument, provide a (preferably named) list of character vectors. If I want separate panes with "Frost" and "Illiteracy" in one and "Population" and "Area" in the other, I'd make a list like this:

list(pane_1 = c("Frost", "Illiteracy"), pane_2 = c("Population", "Area"))

Examples

states <- as.data.frame(state.x77)
fit1 <- lm(Income ~ Frost + Illiteracy + Murder +
           Population + Area + `Life Exp` + `HS Grad`,
           data = states, weights = runif(50, 0.1, 3))
fit2 <- lm(Income ~ Frost + Illiteracy + Murder +
           Population + Area + `Life Exp` + `HS Grad`,
           data = states, weights = runif(50, 0.1, 3))
fit3 <- lm(Income ~ Frost + Illiteracy + Murder +
           Population + Area + `Life Exp` + `HS Grad`,
           data = states, weights = runif(50, 0.1, 3))

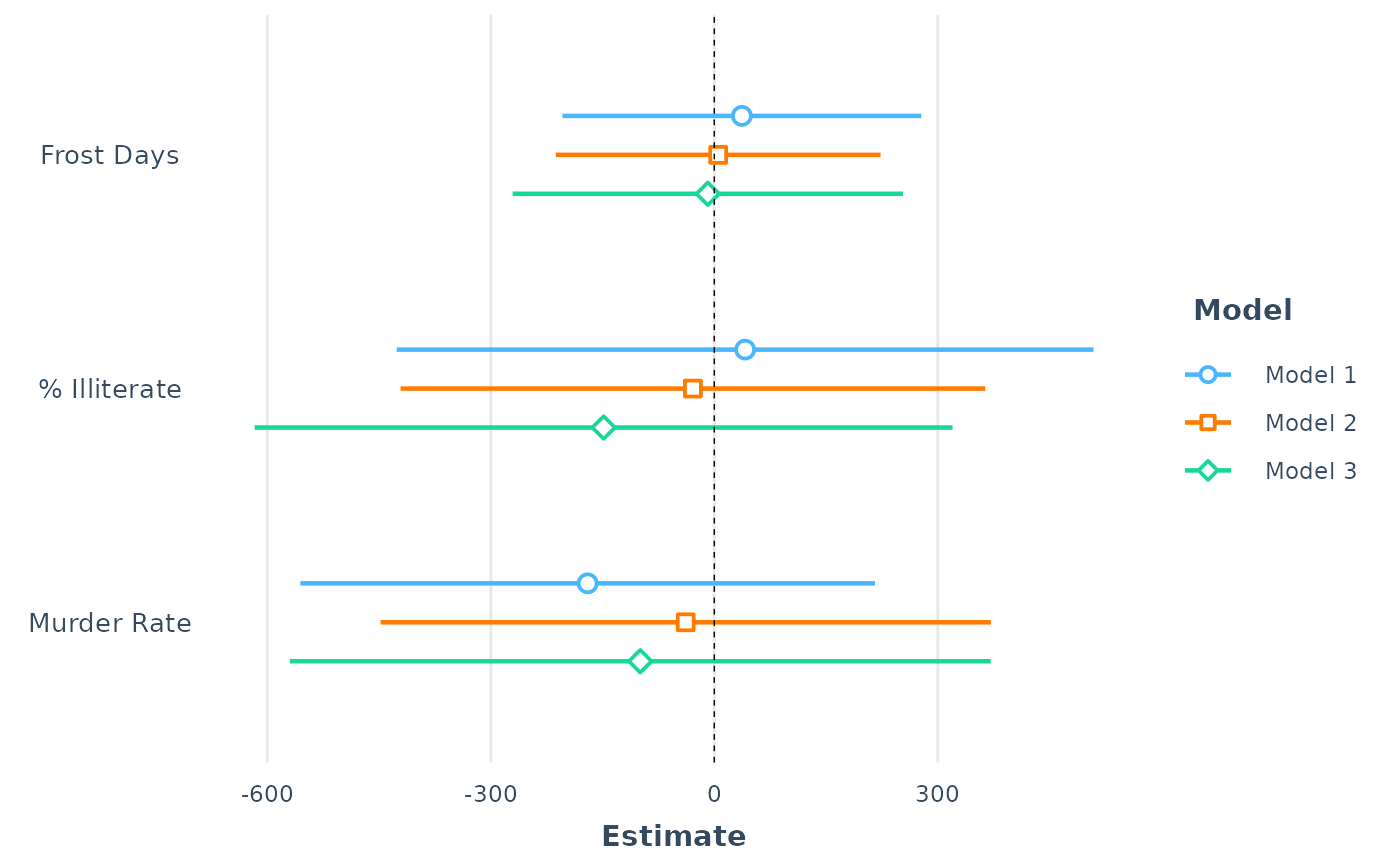

# Plot all 3 regressions with custom predictor labels,
# standardized coefficients, and robust standard errors
plot_summs(fit1, fit2, fit3,
           coefs = c("Frost Days" = "Frost", "% Illiterate" = "Illiteracy",
                     "Murder Rate" = "Murder"),
           scale = TRUE, robust = TRUE)
